LT-6

$799.00

$649.00

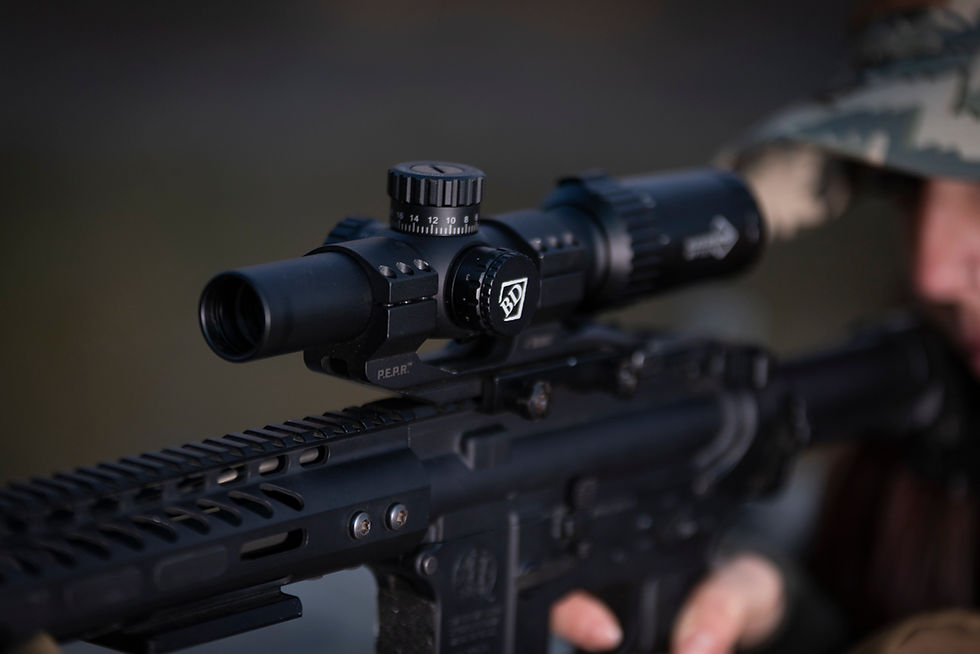

The Black Diamond Optics 1-6x24mm First Focal Plane Scope was designed for the AR platform. This scope has a target ring reticle which allows for fast target acquisition at low power settings, while the much finer center point allows for precision accuracy at greater distances. The LT-6 LPVO is the perfect fit for any AR style platform.

Quantity

Tube diameter	mm	30mm
Tube material		A6063-T6
Objective diameter	mm	24 mm
Magnification Low		1 power
Magnification High		6 power
Diopter range		+ / - + 2 / - 2 center indicated
Exit pupil distance	mm	90 - 100 mm
Fast focus eyepiece		yes
Optical elements		Fully Multicoated Lens
Objective lens		High index, antireflective & -scratch coating
Placement reticle In		first focal plane
Reticle system		Red illuminated
Click value	E/W MOA	0,5
Windage range	MOA	120 MOA
Travel range per rotation	MOA	30 MOA
Windage turret style	²	Adjustable, lift-adjust & push/lock.
Elevation range	MOA	120 MOA
Travel range per rotation	MOA	30 MOA Elevation
turret style	²	Adjustable, lift-adjust & push/lock.
Exit pupil @ low power	mm	8.0
Exit pupil @ high power	mm	3.5
Parallax		Set at 100 yards
transmission.		87%
FOV Low / High (@ 100 y)	Ft	Low: 98 ft / High: 16.1 ft
Exterior design	²	Standard design
Exterior finish		Mat Black, hard anodized
Length	mm	268
Weight	gr	531
Waterproof		IP67
Dustproof, shockproof		Y
Purged sealing		N2 gas
Reticle system		Glass-edged
Reticle illumination		Yes, center section in red
Illumination settings		1-6 / with off position between settings
Battery		CR2032
